The Big “Beastly” Solar/Battery Upgrade Part I – Why?
Those of you who’ve deduced the hints in my previous posts already know what’s coming. For those of you who haven’t, now you know 🙂 The cat is out of the bag, the marmot is out of the hole, the bat has flown it’s cave. We’re upgrading our solar/battery system and it’s not just a small upgrade, it’s a BIG “BEASTLY” Solar/Battery Upgrade (BBSBU). We are going fully Monty, stripping our system down to it’s electronic birthday suit and building it up again from the ground up. We’re more than doubling our solar, we’re aaaalmost tripling our usable battery capacity, we’re going Lithium (oh yes we are) and we’re going to network the whole thing so that we can sit on our computers and collectively drool over how much power we’re generating.
It’s bold, it’s crazy, it’s unnecessary and we’re doing it anyway.
Yup, you heard me right. I did say unnecessary and that’s exactly what I’m going to talk about today. WHY in the world are we doing this? Wasn’t the old system working just fine? Why Now? Why Lithium? Why More Solar? What is the new system going to to enable us to do that the old one couldn’t?
Well, here are your answers…..
Why Upgrade?
So, the obvious answer is that our AGM batteries started failing ~6 months ago which gave us the perfect excuse to do a crazy upgrade, and since our buddies Technomadia already paved the way by testing out their Lithium system for us for several years, this was the perfect excuse to go Lithium and get a battery just a smidgen larger than theirs {{bwahahaha!}} And since we were getting bigger batteries, well we might as well add just a tad more solar than them too {{bwahahahahahah!}}. Makes sense, no? 🙂
Wasn’t The Old System just Fine?
Seriously though, we’ve been thinking about (and saving for) this upgrade for a loooong time. We even upgraded our inverter in 2014 specifically to be ready for this moment.
Our original 600 watt/ 440 AH system that we installed in 2010 has served us incredibly well over the past 5+ years. It was the PERFECT starter system for us back when we weren’t really sure we were going to boondock much and it’s pretty much satisfied our needs completely, especially when we tilt the panels in winter. In the years we’ve had the system I can count on one hand the number of times we’ve been forced to start the generator while boondocking. It’s been a great system.
However in 5 years technology has moved forward by leaps and bounds, especially on the battery side. We’ve tested the limits of our system quite a few times over the past years, and we’ve seen (first hand) the benefits of upgrades thanks to buddies who’ve paved the way for us. Plus we’re not boondocking/dry-camping newbies anymore. We know this is something we LOVE to do and we really enjoy the freedom that solar provides.
The bottom line is that we’re not looking for a starter system anymore. We’re looking for a leading-edge system that’ll see us through the next 5+ years and future-proof us against any rig upgrades (e.g. residential fridge) we might do down the line. It’s kind of like going from a tent to an RV. It’s not that the tent wasn’t working, it’s just that the RV is sooooooo much nicer 🙂
Why Now?
Well apart from our batteries failing, the planets aligned so that “Marvelous Marvin” was in the southwest desert and had time to squeeze us in. For those of you who don’t know Marvin Braun (e-mail contact HERE, website HERE), he was the fellow who did our original solar installation in 2010. We enjoyed that experience so much, we already knew we wanted him back for our “big upgrade”. He’s knowledgeable, solar geeky, infinitely patient (which, given the million-and-one-pain-in-the-butt questions we typically pose, is a huge bonus), happy to take you through every single detail of what he’s doing as he’s doing it, and just does all-around excellent work. You just feel “good” when you’ve got Marvin on your side (seriously, I’m not just saying that), and since we were diving into brand new territory with Lithuim (he’s been working with RV Lithium installations for 2 years already) we wanted that same support this time around 🙂
Why Go Lithium?
So the biggest (and costliest) upgrade that we’re doing this time around is switching our batteries from AGM (sealed lead acid) to Lithium (or if you want to be super-geeky-specific Lithium Iron Manganese Phosphate (LiFeMnPO4)). 5 years ago this technology wasn’t even on our radar. Now, it’s fairly established and it’s been adopted by both boaters & RVers alike, and for good reason too. Lithium has a ton of key advantages which make it very compelling, especially for nomadic types living in small spaces like us.
Now I should point out that Technomadia has already written tons of posts about Lithium (which I highly recommend) so what I’m about to write isn’t exactly ground-breaking stuff. But for those of you new to this whole thing, here’s why we’ve personally been drooling over Lithium for the past 2 years:
- Lithium Have ZERO ABSORB time. One of the biggest advantage of lithium is that they can bulk charge all the way. Those of you who have lead acid are familiar with their classic 3-stage charging cycle -> there’s the initial bulk phase where you push in a bunch of current (this basically takes your battery to ~90% charged), then you get to the absorb phase where charge voltage is held constant (current is way down) so that the last 10% charge can be “shoved into” the battery, then finally you get to the float phase (charge voltage drops, battery is full). The bulk phase is typically pretty fast, but the absorb phase always seems to takes forever. In our old AGM batteries it wasn’t unusual for us to need ~2 hours for absorb to be complete. With Lithium that 2nd phase is completely eliminated!!
-
Lithium charges super fast! Lithium Can Charge MUCH faster. This really goes hand-in-hand with #1. Lead acid batteries have high(er) internal resistance and that resistance increases the more current you try to push into them. Lithium, on the other hand, have very little internal resistance so they can take in just about as much current as you can put into them. When you add the fact that they have zero absorb phase (which really does save a ton of time), this means they are able to charge SUPER fast. If you want an analogy lead acid is kind of like swimming through mud (it’s takes effort to begin with and the more mud you get on you, the harder it gets) whereas lithium is kind of like swimming through water (it takes very little effort and goes swimmingly all the way). So with Lithium you just pack in as much power as you can produce until the batteries are full. Job done!
- Lithium Don’t Need to Be Fully Charged. Another HUGE advantage of Lithium is that they don’t need to be fully charged. In fact they kinda prefer it when they aren’t. Lead acid batteries really need to be fully charged on a regular basis. It’s a chemistry thing. When lead acid batteries don’t fully charge, sulphur crystals start to build up on the plates inside the battery deteriorating both performance & lifespan. You can get around this (somewhat) by equalizing the batteries (basically putting a really high charge on them and de-sulphinating those plates), but over time it’s really not good for them. Add-in the long absorb time I talked about in #1 and you’re basically always fighting the battle of getting those batteries fully charged. Lithium, on the other hand, doesn’t care AT ALL about being fully charged. They are equally happy at 50% as they are at 70% and are perfectly OK if you never, ever, ever take them to 100%. So, if you’ve got a week of cloudy days where you’re batteries never get fully charged, it’s perfectly fine.
-
Lithium has more usable capacity than lead acid Lithium Can Be More FULLY Utilized. The “typical” rule of thumb for lead acid batteries is that you don’t really want to take them below 50% discharge. You can go lower, but you’ll reduce their life span quite quickly. So, if you have a 440 AH battery pack, that means only ~50% of it, or ~220AH is usable. Lithium, on the other hand can be taken down to 20% without any reduction in life span. So, that same 440AH battery pack in lithium now yields 352AH of usable power, 1.6 times more than lead acid!!!
Note/ I should mention here that the draw-down limits of Lithium are super important. One of the negatives about about these batteries is that they will DIE (kaput, gone, forever dead) if you take them too low and you MUST have controls in place to prevent this (we’ll cover our controls in later posts). So, whereas you might survive drawing down your lead acid batteries too far, you will NOT survive doing that with your Lithium. -
Lithium are around half the weight of lead acid Lithium Are WAY Lighter. Lead acid batteries are heavy, and bulky. The 440 AH that we had in our bay weighed 264lbs. In comparison 400AH of Lithium weighs 110lbs, less than HALF! Plus it’s SMALLER in size too! By going Lithium we’ll be able to increase our usable capacity quite substantially while decreasing our battery weight. And we’ll be able to fit the whole darn thing into a smaller compartment too. Win, win and win.
-
Lithium can support heavy loads with very little loss (Source: Elite Systems) Lithium DON’T Lose Capacity with Big(ger) Loads. This might seem a strange advantage, but bear with me. When you put a heavy electrical load on a lead acid battery they lose capacity. So, that 440AH lead acid battery pack of yours actually delivers way less than 440AH when you load it up. It’s called Puerkert’s Law and it’s one of the many reasons you don’t want to use lead acid to drive stuff in your rig that sucks a lot of electricity (at least not for long(er) times). Lithium, on the other hand doesn’t have that problem. It can deliver pretty darn heavy loads with barely any loss of capacity. As long as you have the charge you can drive these babies aaalmost as hard as you’d like.
- Lithium DON’T Lose Capacity At Low Temps. One of the other annoying things with lead acid is that they lose capacity in the cold. So, yet again your 440AH lead acid battery pack actually delivers way less than 440AH as it gets colder. We learned this the hard way in 2011. Lithium, on the other hand, don’t have this problem. If you’ve got a 400AH pack it’ll deliver pretty darn close to full capacity even if it gets down to freezing. Kind of like a good cup of coffee, it’s really nice to have consistency 🙂
Note/ Lithium does have some temp-related issues, especially relating to charging (if it’s too cold) and deteriorating lifespan (if they get too hot), but we’ll talk about how we address these issues in our installation posts. - Lithium Last Longer. Probably the hardest thing to accept about Lithium are the costs. They are not cheap (at all), but they do make up for it by lasting about twice as long as lead acid. Our old Lifeline AGM batteries are rated to last 1000 cycles (at 50% depth-of-charge). Our new Lithiums are rated for at least 2000 cycles (at 80% depth-of-charge). If you keep your system for the rated lifetime of the batteries, the cost per usable amphour are about a wash.
Why More Solar?
Well very simply because more is always better, right? Clouds, partial shade, hot summer days and low winter sun all decrease how much solar power you can produce, so the more panels you have the more flexibility you have in each of those situations. Plus if we’re getting all that sexy lithium capacity (and we have the space on the roof to do it), we may as well max out our generation capacity too.
What Is The New System Going to Enable Us To Do?
So kind of like the bionic man, we’re going to be able to go further, faster, with less weight and basically just look really cool doing it.
Our lithium batteries, combined with more solar panels are going to enable us to breeze through all of “corner cases” we experienced in our old system.
- Extended Cloudy days where you can’t fully charge your batteries? No problem!
- Partial shade on your roof? Still no problem!

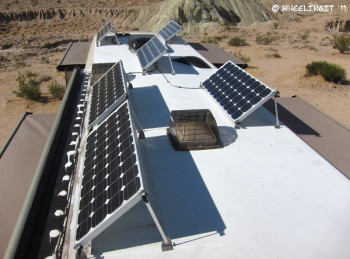

- Winter days where we’re too lazy (or too hungover) to tilt the panels? No sweat!
- Super cold mornings in the Sierra Nevada when you need extra juice. Done!
- Never having to wait around for absorb time? Positively delicious!
- Charging at the speed of light? Aaaaaalmost!
- Running your air conditioner or washer/dryer on your batteries? Well, we’ll talk about that later…..(and yes, that’s a tease).
Plus (and there are HUGE bonus points in this) we are going to be able to geek out like only geeks can on power generation and battery charging. It’s just frikkin’ cool!
Coming up Next -> Component Details & Why We Chose What We Chose
